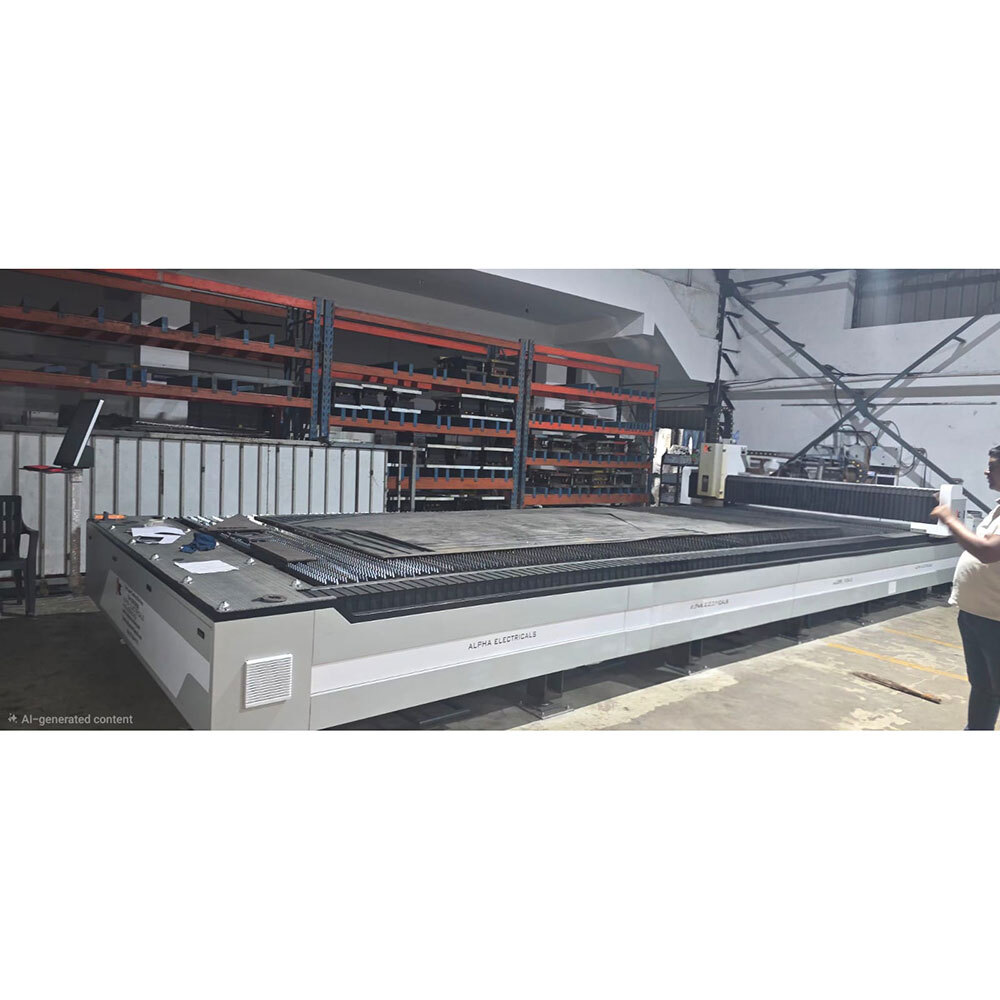

Cnc Fiber Laser Cutting Machine

Cnc Fiber Laser Cutting Machine Specification

Product Type
Cnc Fiber Laser Cutting Machine

General Use
Metal sheet cutting

Material
Mild Steel, Stainless Steel, Aluminum

Type
Fiber Laser

Capacity
Up to 16 mm thickness

Weight (kg)
3500 kg

Computerized
Yes

Automatic
Fully Automatic

PLC Control
Yes

Bar Feeder
Not Included

Power Source
Electric

Power Consumption
6 kW

Rigidity
High

Voltage
380V / 50Hz

Motor
Servo Motor

Table Size
1500 mm x 3000 mm

Spindle Speed
No Spindle (Laser Driven)

Axial Choice
XYZ

Dimension (L*W*H)
4500 mm x 2200 mm x 1800 mm

Feature
High precision, low maintenance, compact design

Color
Grey and Blue

Laser Power
1000W / 1500W / 2000W (optional)

Safety Features
Enclosed machine, emergency stop, interlock doors

Software Compatibility
Compatible with CAD/CAM software

Supported File Formats
DXF, PLT, AI, Gerber, etc.

Repeatability
0.02 mm

Cutting Speed
Up to 30 m/min

Controller Interface
CNC User Interface with Touch Screen

Minimum Line Width
0.15 mm

Drive System
Precision Rack and Pinion

Max Acceleration
1.0G

Focus Adjustment
Auto Focus Laser Head

Cooling System
Water Cooling

Fume Extraction
Built-in Dust and Smoke Extractor

Positioning Accuracy
0.03 mm

Working Environment
0-45C, Humidity < 80%

Cnc Fiber Laser Cutting Machine Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
1 Unit Per Month

Delivery Time
30 Days

About Cnc Fiber Laser Cutting Machine

Discover the featured CNC Fiber Laser Cutting Machine, engineered for opulent performance and polished results. With potent laser power options of 1000W, 1500W, and 2000W, it achieves rapid cutting speeds of up to 30 m/min and exemplary positioning accuracy at 0.03 mm. The affordable, fully-automatic system shines in both small workshops and industrial environments, thanks to its built-in safety, intuitive CNC touch interface, and advanced fume extraction. Order today for a compact solution combining high precision, impressive repeatability, and remarkable versatility for metal sheet cutting.

Precision and Versatility: CNC Fiber Laser Cutting Excellence

The CNC Fiber Laser Cutting Machine is used for precise and efficient metal sheet cutting across various industries. Whether for general sheet metal fabrication or specialized applications in automotive, construction, or electronics, it supports diverse materials like mild steel, stainless steel, and aluminum. The application method utilizes a streamlined CNC touch interface, CAD/CAM compatibility, and an auto-focus laser head, making it suitable for high-production environments that demand speed, accuracy, and reliability.

Sample Policy and Domestic Logistics Insight

Our CNC Fiber Laser Cutting Machines adhere to a clear sample policy with stock ready for demonstration and evaluation. They are shipped from a major FOB port in India, enabling seamless logistics and careful valuation for our clients. The main domestic market is supported through a robust supply network, ensuring prompt delivery and setup. Trust in our logistics expertise to experience efficient order fulfillment and quick access to your desired machine solution.

FAQ's of Cnc Fiber Laser Cutting Machine:

Q: How does the CNC Fiber Laser Cutting Machine ensure high cutting precision?

A: The machine features a potent auto-focus laser head, precision rack and pinion drive, and positioning accuracy up to 0.03 mm. Its repeatability of 0.02 mm ensures consistently sharp and accurate cuts, even on complex metal sheets.

Q: What file formats are supported for cutting designs?

A: This machine is compatible with CAD/CAM software and supports a variety of file formats including DXF, PLT, AI, Gerber, and more, making it easy to import designs directly for processing.

Q: Where can this machine be effectively used?

A: The CNC Fiber Laser Cutting Machine shines in both small workshops and large industrial operations requiring general or specialized metal cutting. It adeptly processes mild steel, stainless steel, and aluminum sheets up to 16 mm thickness.

Q: What safety features does the CNC Fiber Laser Cutting Machine offer?

A: Equipped with a fully enclosed frame, interlock doors, and an emergency stop, the machine prioritizes operator safety while minimizing exposure to laser emissions and fumes.

Q: When is the machine ready for dispatch and what is the delivery process?

A: Stock is maintained for prompt valuation and dispatch. Machines are shipped via established FOB ports in India, ensuring efficient and secure logistics for clients across the main domestic market.

Q: What are the main benefits of using this CNC Fiber Laser over traditional cutting methods?

A: This featured machine delivers affordable, high-speed, and polished cuts with minimal maintenance, precision up to 0.03 mm, automatic operation, and built-in dust and smoke extraction for a clean, efficient workspace.
