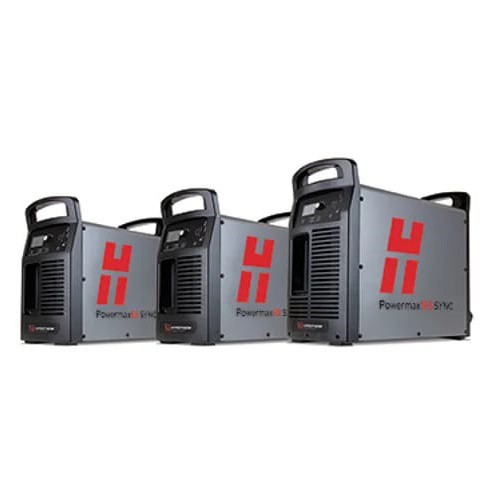

Air Plasma Powermax105

600000.00 - 650000.00 INR/Number

Get a Price/Quote

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Air Plasma Powermax105 Price And Quantity

Price Range 600000.00 - 650000.00 INR/Number
Minimum Order Quantity 1 Number

Air Plasma Powermax105 Trade Information

Payment Terms Cash on Delivery (COD) Cash Advance (CA) Cash in Advance (CID) Cheque
Supply Ability 10 Number Per Month
Delivery Time 30 Days
Main Domestic Market All India

Product Description

Cutting capacity

Capacity	Thickness	The cutting speed
Recommended	32 mm	500 mm/min
	38 mm	250 mm/min
Separation (manual cutting)	50 mm	125 mm/min
Pierce (Drilling)*	22 mm

*Drilling specification for manual or mechanized cutting with programmable torch height control.

Maximum removal gouging

Capacity	Metal removal rate	Gouge profile
Common gouging	8.6 kg per hour	6.6mm L x 6.0mm W

General specifications

Input voltages	CSA 200"600V, 3Ph, 50/60Hz EC 200"600V, 3Ph, 50/60Hz 380"400V, 3Ph, 50/60Hz
Output in kilowatts	16.8 kW
Input current	CSA 200/208/240/480/600 V, 3F 58/56/49/25/22 A at 16.8 kW EC 230/400 V, 3F 50/29 A at 16.8 kW 380/400 V, 3F 30/28 A at 16.8 kW
Output current	30"105 A
Nominal output voltage	160 VDC
Duty cycle at 104F	CSA 70% at 105A, 240V, 3Ph 80% at 105 A, 480"600 V, 3P 100% @ 94 A, 480"600 V, 3P 100% @ 88A, 240V, 3Ph EC 80% at 105A, 400V, 3Ph 100% @ 94A, 400V, 3Ph 100% at 88A, 230V, 3P
Open Circuit Voltage (OCV)	CSA " 300 VDC CE " 288 VDC
Dimensions with handles	592mm L; 274mm W; 508mm H
Weight with 7.6m torch	CSA 45.3 kg EC 230"400 V, 42.7 kg 400V, 39.4kg
Gas supply	Clean, dry, oil-free air, or nitrogen
Ideal gas inlet pressure	7.6"8.3 bar
Minimum gas inlet pressure	5.5 bar
Recommended inlet gas flow rate range	Cut: 260 L/min at 5.9 bar Gouging: 260 L/min at 4.8 bar
Input power cable length	3 m
Power supply type	Inverter IGBT (insulated gate bipolar transistor)
Motor power specification	30 kW for 105 A total output
Electrical efficiency	91 %
Certifications	CSA certified for use in the Americas and Asia, excluding China CE " for use in Europe, Australia, New Zealand, Belarus, Serbia, Ukraine and other countries where these certifications are accepted. Also RCM, Ukraine and Serbia. UKCA " Great Britain
Guarantee	Power supplies have a three-year warranty and torches have a one-year warranty

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Plasma Cutting Machines' category

CNC Plasma Gas Cutting Machine Price Range : 1250000.00 - 1800000.00 INR/Unit Minimum Order Quantity : 1 Power Source : Electric Warranty : Yes

Send Inquiry

EX-Trafire 85 HD Thermacut Plasma Power Source Price Range : 200000.00 - 250000.00 INR/Unit Minimum Order Quantity : 1 Power Source : Electricity Warranty : Yes Color : Black Power : 220240 Volt (v) Operating Type : Automatic Usage & Applications : Industrial

Send Inquiry

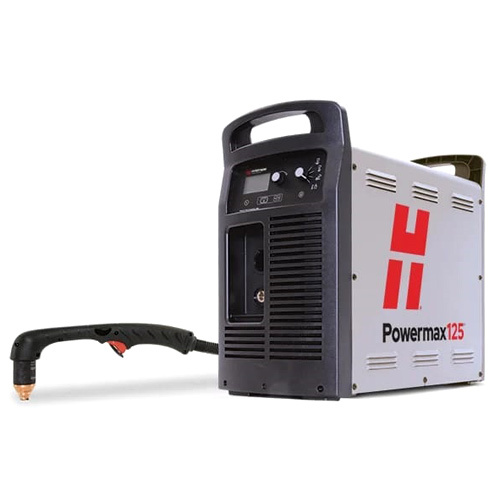

Air Plasma Powermax125 Price Range : 950000.00 - 1050000.00 INR/Number Minimum Order Quantity : 1 Power Source : Electricity Warranty : Yes Color : Black Power : 220240 Volt (v) Operating Type : Automatic Usage & Applications : Industrial

Send Inquiry

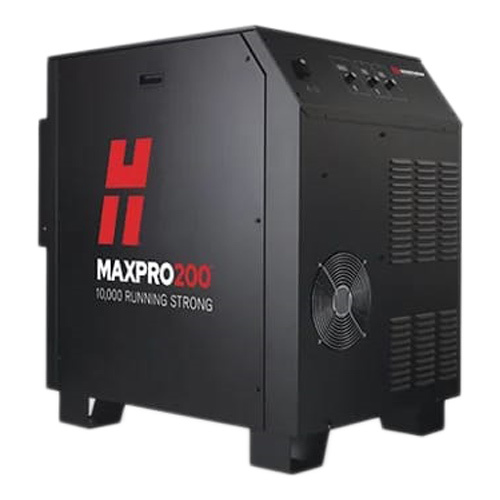

Air Plasma max Pro200 Price Range : 1650000.00 - 1800000.00 INR/Number Minimum Order Quantity : 1 Power Source : Electricity Warranty : Yes Color : Black Power : 220240 Volt (v) Operating Type : Automatic Usage & Applications : Industrial
