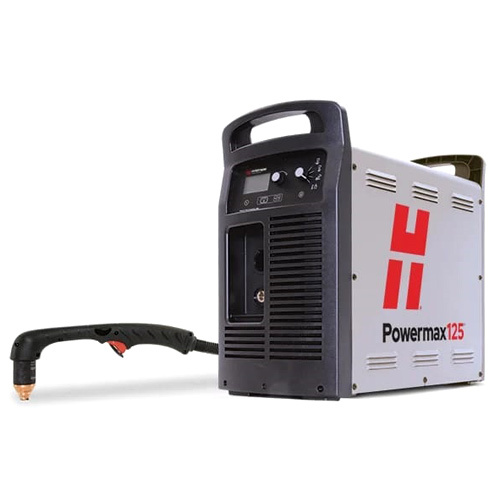

Air Plasma Powermax125
950000.00 - 1050000.00 INR/Number
Product Details:
X
Air Plasma Powermax125 Price And Quantity
- 1 Number
- 950000.00 - 1050000.00 INR/Number
Air Plasma Powermax125 Trade Information
- Cash on Delivery (COD) Cash Advance (CA) Cash in Advance (CID) Cheque
- 10 Number Per Month
- 30 Days
- All India
Product Description
| Input voltages | CSA | 480/600V, 3Ph, 50/60Hz |
|---|---|---|
| EC | 400V, 3Ph, 50/60Hz | |
| CCC | 380V, 3Ph, 50/60Hz | |
| Input current at 21.9 kW | 300/400/480/600V, 38/36/31/24A | |
| Output current | 30"125 A | |
| Nominal output voltage | 175 VDC | |
| Duty cycle at 40C | 100% at 125 A | |
| Open Circuit Voltage (OCV) |
|
|
| Dimensions with handles | 592mm L; 274mm W; 508mm H | |
| Weight with 7.6m torch |
|
|
| Gas supply | Clean, dry air free of oil or nitrogen | |
| Recommended gas inlet pressure/flow range | Cutting: 260 l/min at 5.9 bar Gouging: 212 l/min at 4.1 bar |
|
| Input power cable length | 3 m* | |
| Power supply type | Inverter IGBT (insulated gate bipolar transistor) | |
| Motor power specification | 40 kW for 125 A total output | |
| Certifications | CSA certified for use in the Americas and Asia, excluding China. CE, C-Tick, CU/GOST, Ukraine and Serbia for use in Europe, Australia, Belarus, Kazakhstan, Russia, Serbia, Ukraine and other countries where these certifications are accepted. CCC for use in China. |
|
| Guarantee | Power supplies have a three-year warranty and torches have a one-year warranty. | |
*No power cord on some CCC models.
Engine driven generator operation
| Engine power rating | System output current | Performance (bow stretch) |
|---|---|---|
| 40 kW | 125 A | Total |
| 30 kW | 125 A | Limited |
| 30 kW | 100 A | Ttal |
| 25 kW | 100 A | Limited |
| 22.5 kW | 75 A | Total |
| 20 kW | 75 A | Limited |
| 20 kW | 60 A | Total |
| 15 kW | 60 A | Limited |
| 12 kW | 40 A | Total |
| 10 kW | 40 A | Limited |
| 10 kW | 30 A | Total |
| 8 kW | 30 A | Limited |
Capacity
| Capacity | Thickness | Cutting speed |
|---|---|---|
|
Court |
||
| Recommended | 38 mm (1-1/2 in) | 457 mm/min (18 in/min) |
| 44 mm (1 3/4 in) | 250 mm/min (10 in/min) | |
| Separation (manual cutting) | 57 mm (2-1/4 in) | 125 mm/min (5 in/min) |
| Drilling* | 25 mm (1 in) | |
*Drilling specification for manual use or with automatic torch height control
| Capacity | Metal removal rate | Notch profile |
|---|---|---|
|
Gouging |
||
| Common gouging | 12.52 kg/h | 4.3mm " 7.9mm L x 6.1mm " 9.9mm W |
